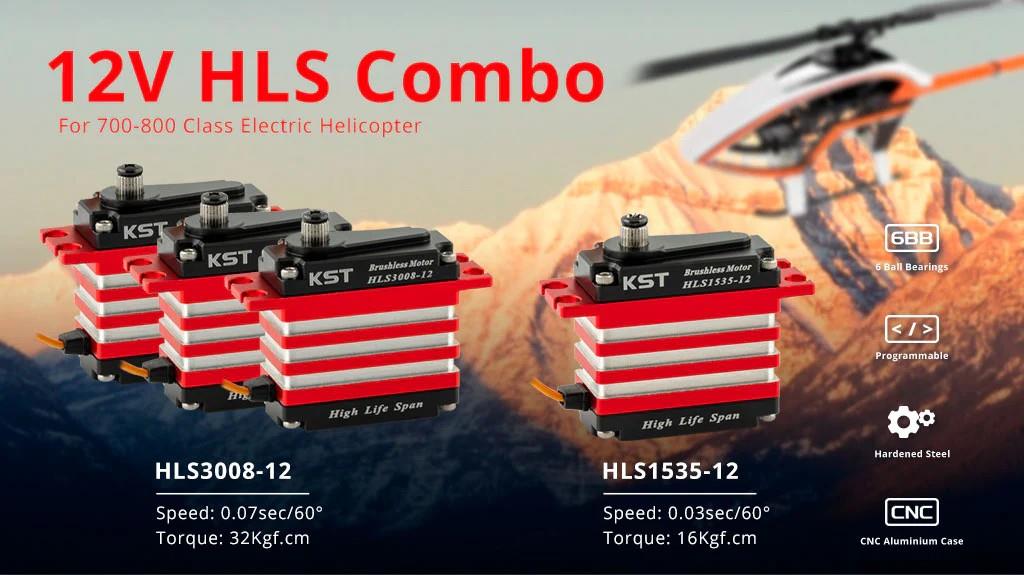

12V HLS Combo Brushless Servos - HLS3008-12 & HLS1535-12 Combo Set for 700 to 800 Class Electric Helicopter

Download manual HLS3008-12

Download manual HLS1535-12

Features

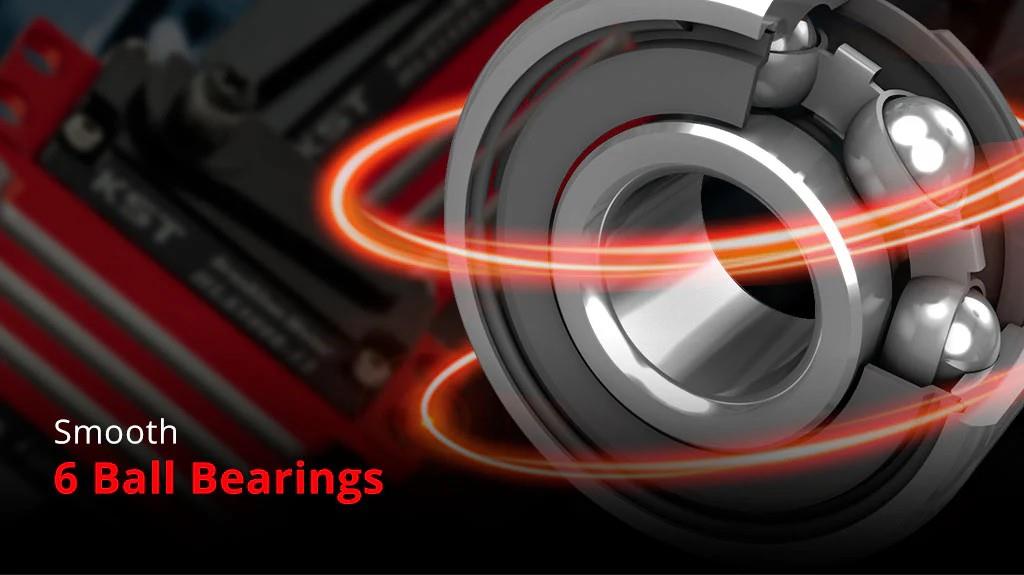

6 Ball Bearings
High Life Span
Ultra High Torque & Excellent Speed

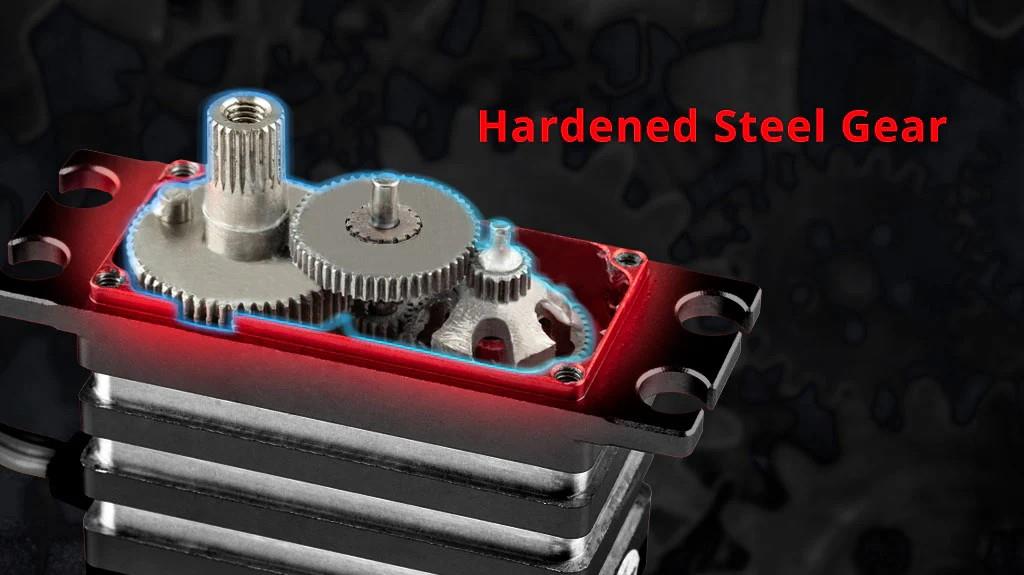

Hardened Steel Gear
CNC Aluminium Case
Brushless DC Motor
DC12V Rated Voltage
Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive
Ideal for 700 to 800 Class Helicopter

Specification (HLS3008-12)

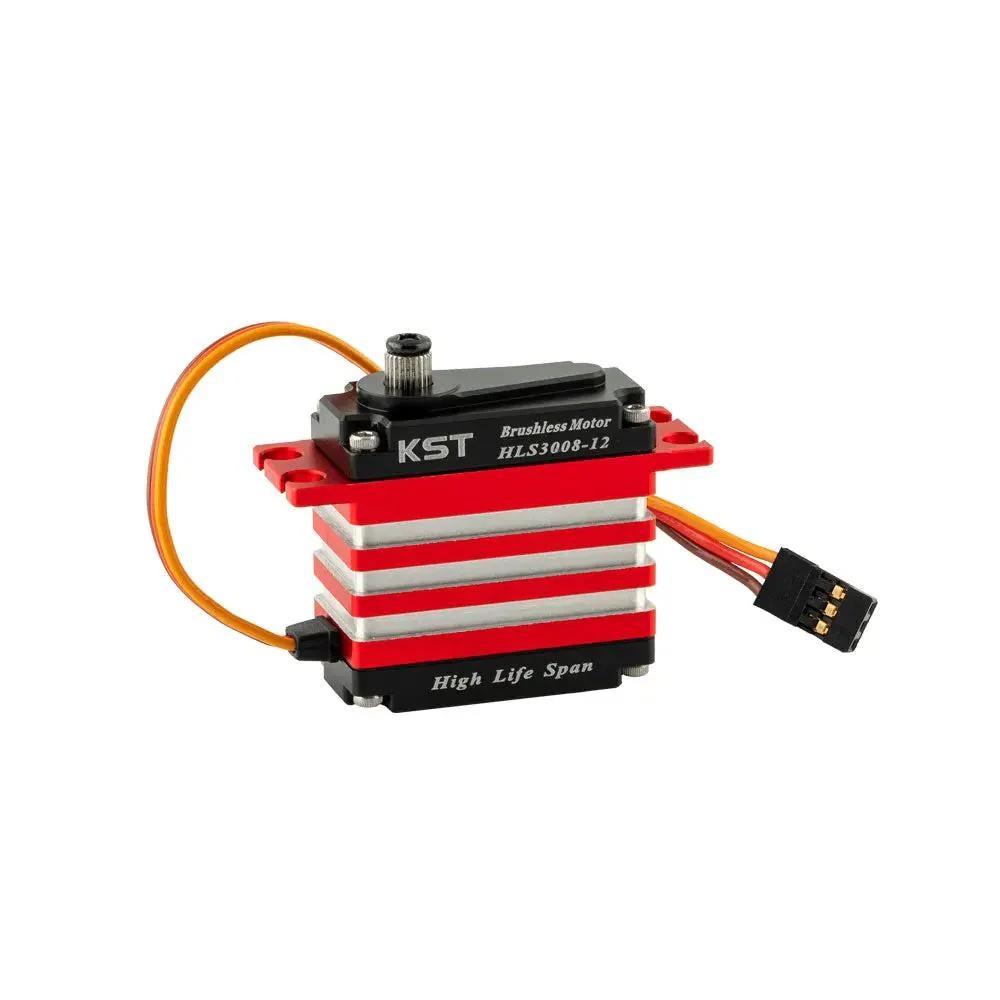

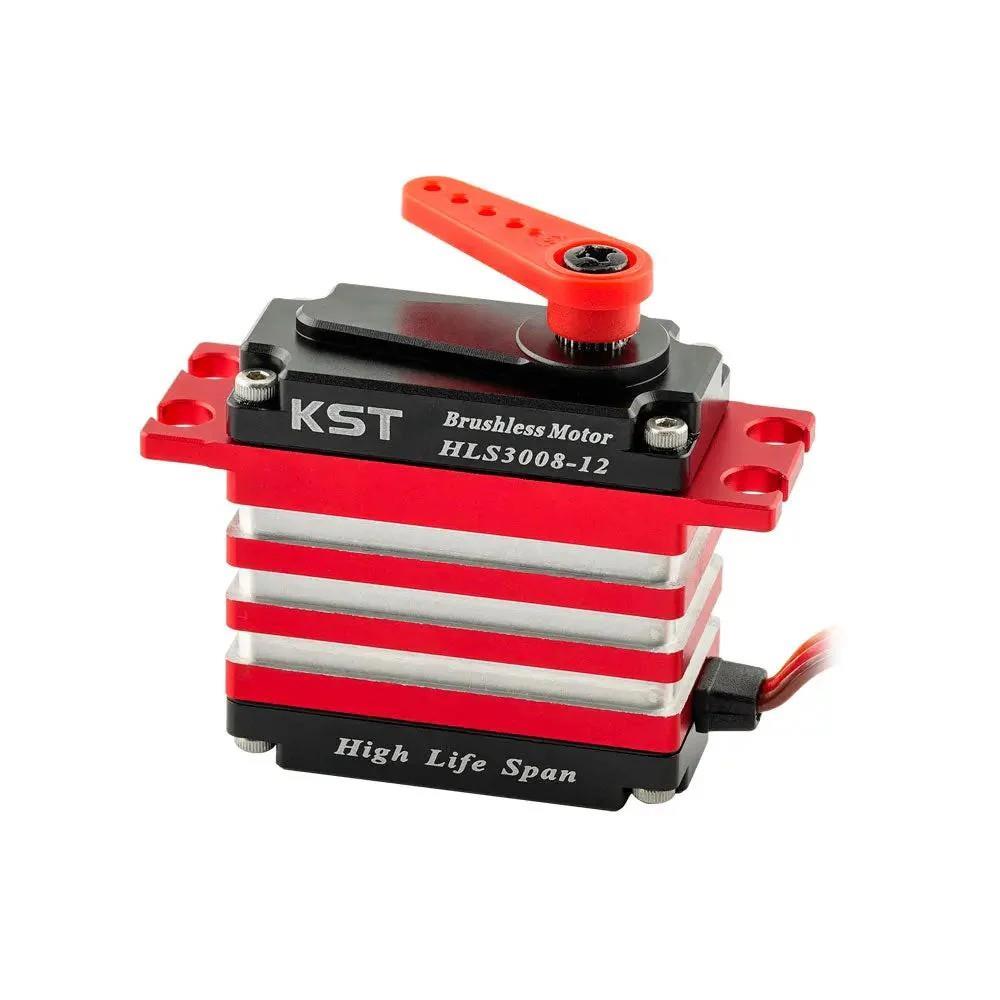

Item: HLS3008-12 High Life Span Brushless Servo
Rated Voltage: DC12V
Voltage Range: DC8.0V-13.0V
Torque: 25Kgf.cm@8.4V, 30Kgf.cm@12V, 32Kgf.cm@13V
Speed: 0.11sec/60°@8.4V, 0.08sec/60°@12V, 0.07sec/60°@13V
Working Frequency: 760μs/560Hz
Temperature Range: -10°......+65℃
Programmable: YES
Case Material: Aluminium Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer

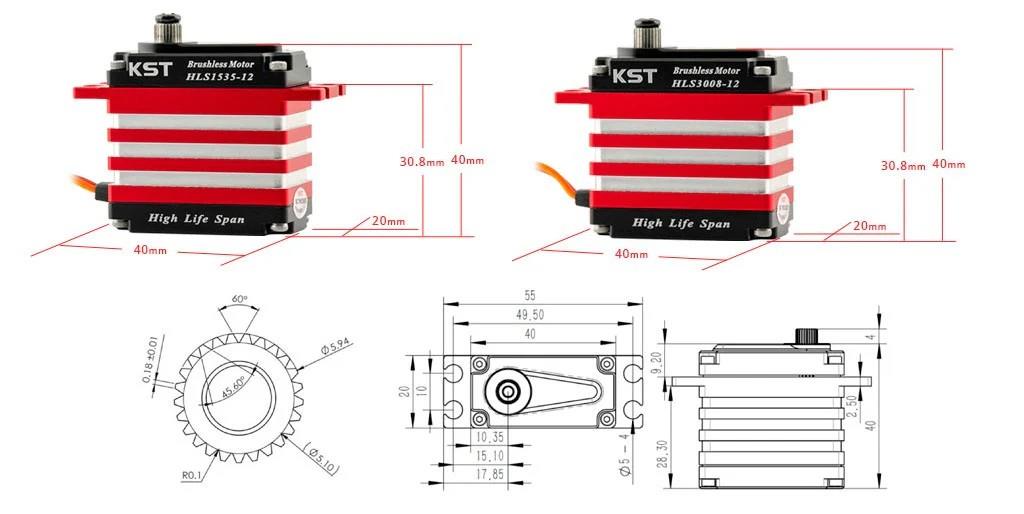

Case Dimensions: 40mm*20mm*40mm±0.2mm
Weight: 72g±10%
Ball Bearing: 6 BB

Specification (HLS1535-12)

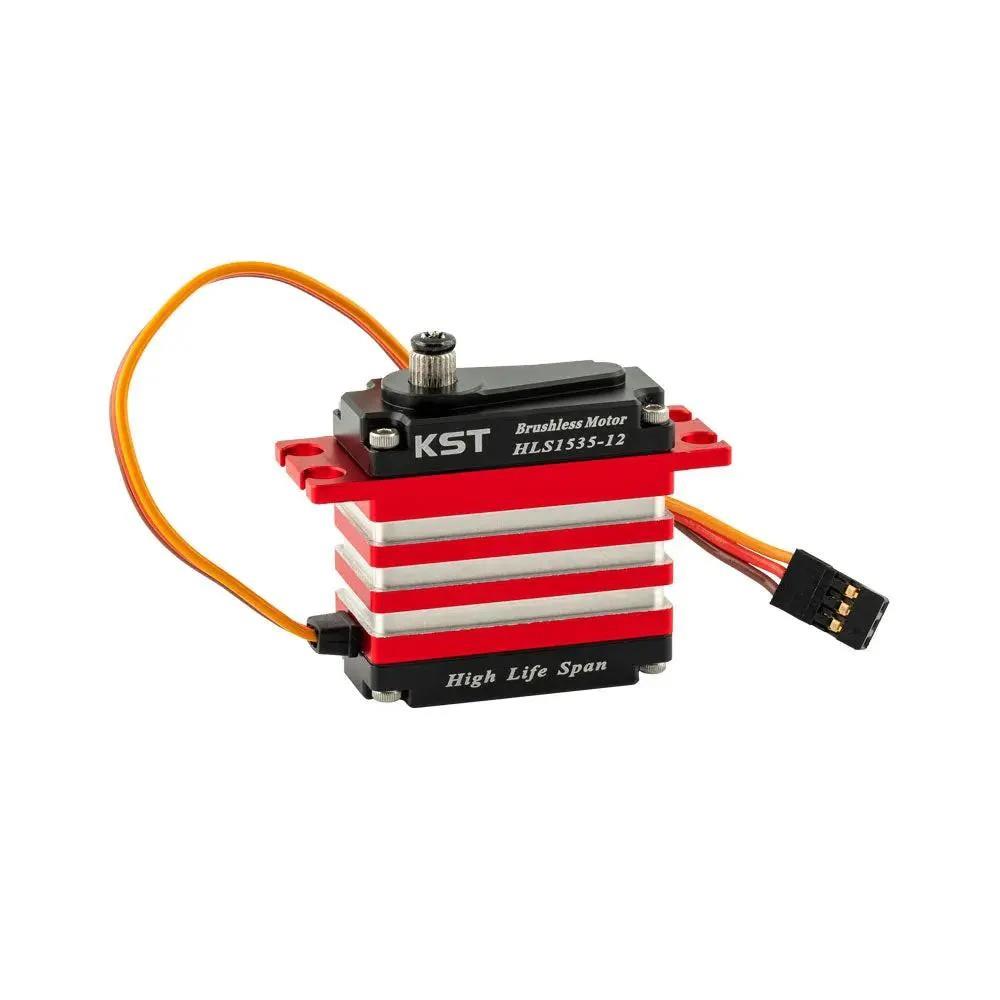

Item: HLS1535-12 High Life Span Brushless Servo
Rated Voltage: DC12V
Voltage Range: DC8.0V-13.0V
Torque: 12Kgf.cm@8.4V, 15Kgf.cm@12V, 16Kgf.cm@13V
Speed: 0.050sec/60°@8.4V, 0.035sec/60°@12V, 0.030sec/60°@13V
Working Frequency: 760μs/560Hz
Temperature Range: -10°......+65°C
Programmable: YES
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer

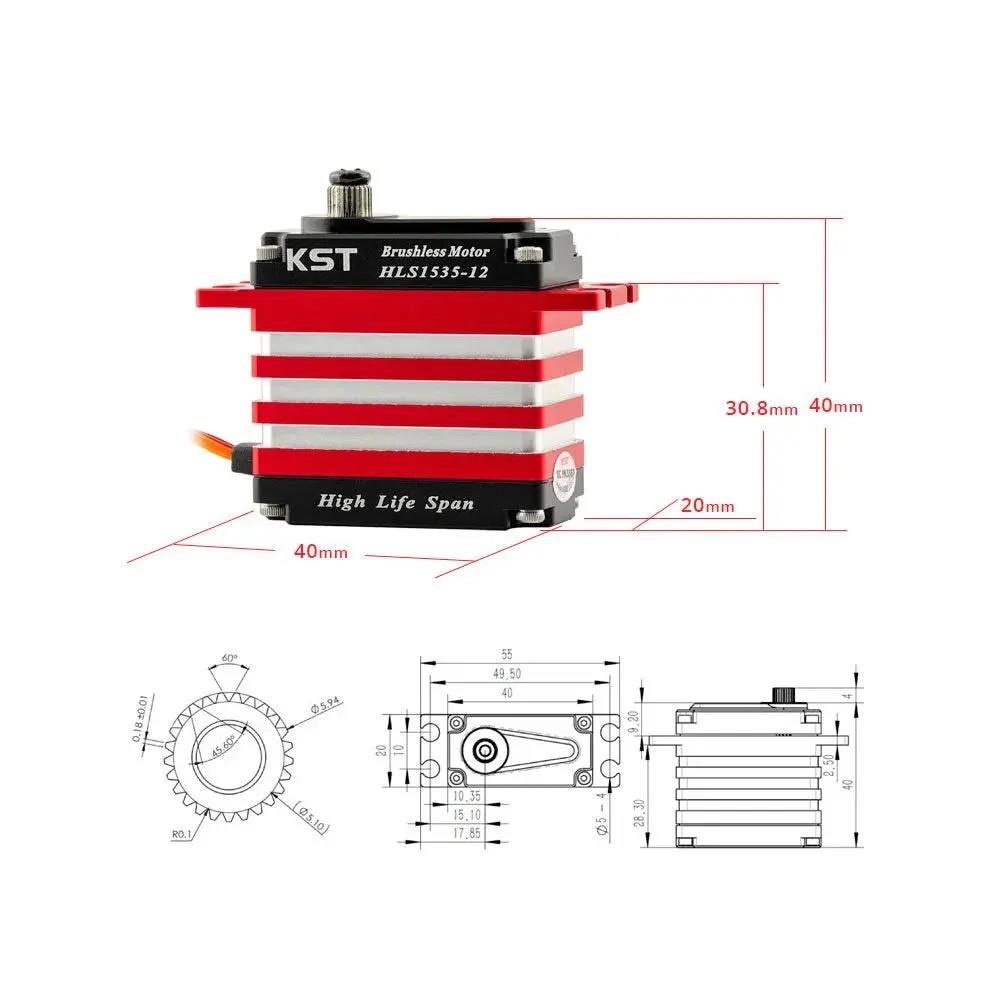

Case Dimensions: 40mm*20mm*40mm±0.2mm
Weight: 72g±10%
Ball Bearing: 6 BB

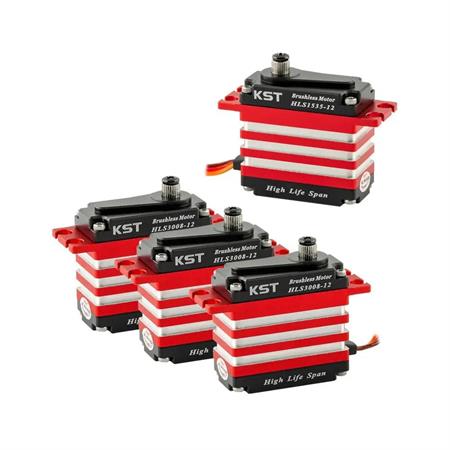

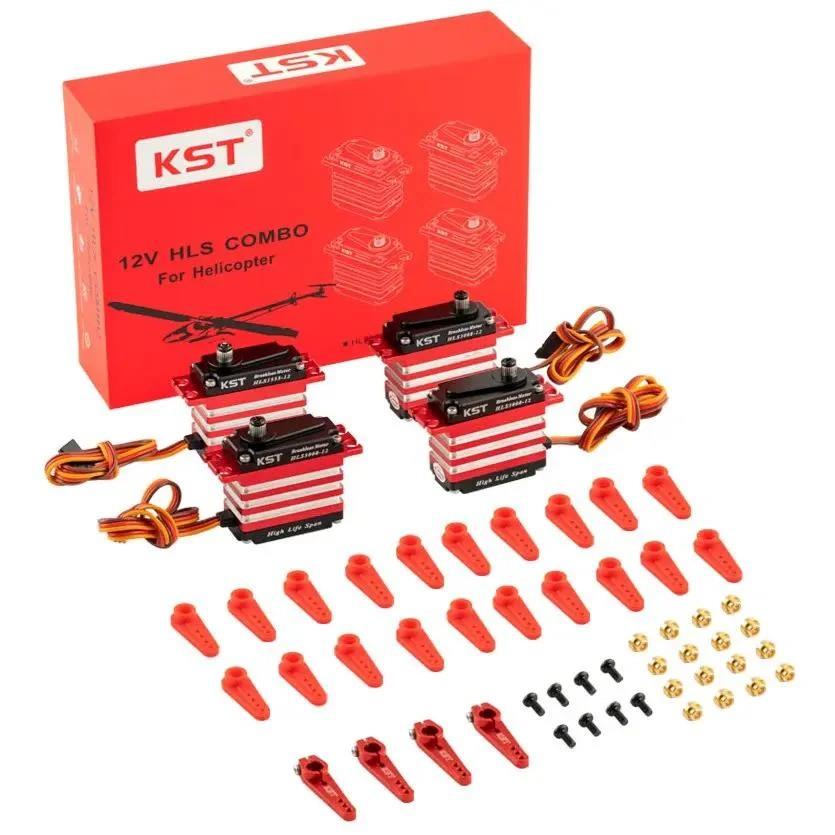

Package Includes
3 * HLS3008-12 High Life Span Brushless Servo
1 * HLS1535-12 Brushless Standard Servo
4 * CNC Servo Horn
20 * Plastic Servo Horn
16 * CNC Aluminium Grommets
8 * Servo horn screws

HLS3008-12 High Life Span Brushless Servo Technical Specification
HLS1535-12 Brushless Standard Servo Technical Specification
