BLS815 Digital Metal Gear Brushless Servo 20kg.cm 0.07sec/60degree for 550-700-class Helicopters

Produktnr.: KST-BLS815

Førpris: DKKDin pris:585,00 DKK

Netshoppen med KnowHow
14 dages fuld returret
1-2 dages levering

Beskrivelse
Anmeldelser

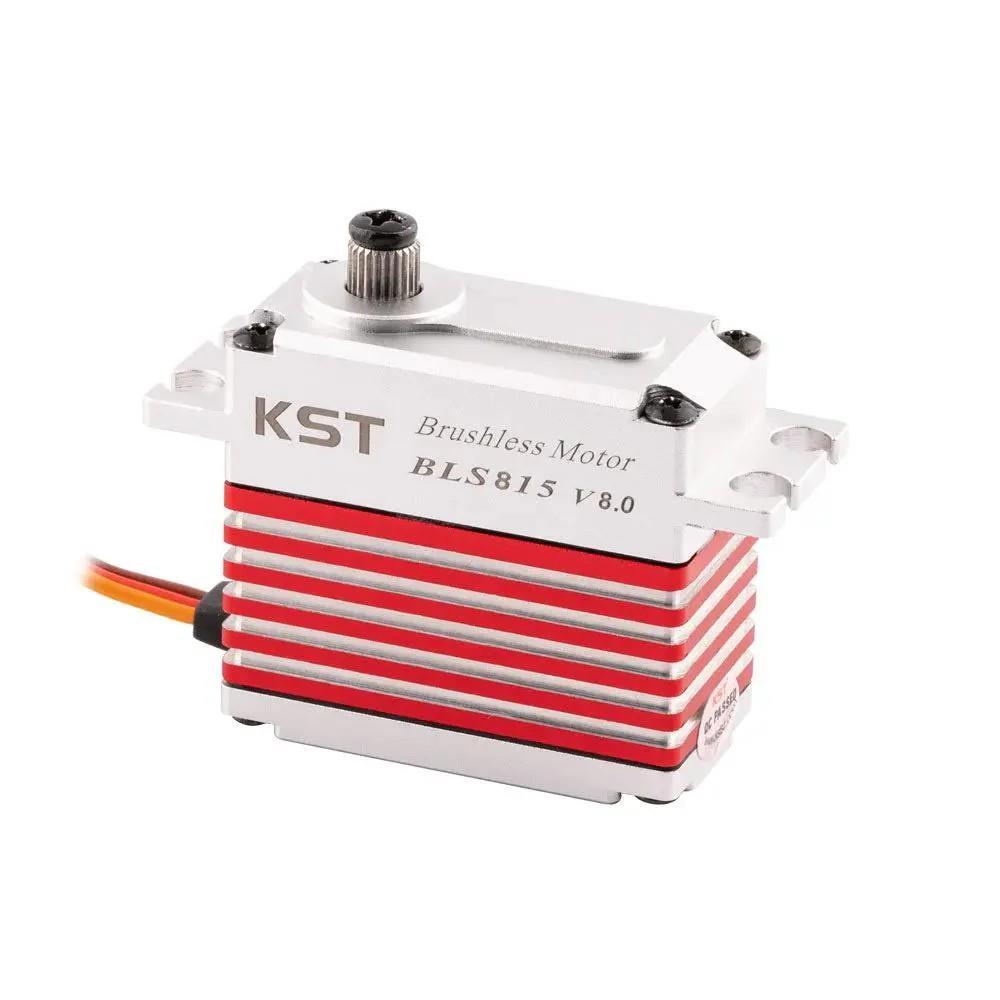

The KST BLS815 brushless servo, in a robust aluminum housing with a precision steel gearbox, is a power hunter among the servos. High-quality workmanship, speedy positioning times and perfect resetting accuracy make the servo universally applicable.

We also provide the BLS825 Brushless HV Servos.

Features
Ultra High Torque & Excellent Speed
Hardened Steel Gear
CNC Aluminium Case
High Quality Brushless Motor
Dual Ball Bearings
Ideal for 550-700 Class Helicopter Cyclic

Specification
Item: BLS815 V8.0 Brushless Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 14Kgf.cm@6.0V / 17Kgf.cm@7.4V / 20Kgf.cm@8.4V
Speed: 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
Working Frequency: 1520μs/333Hz

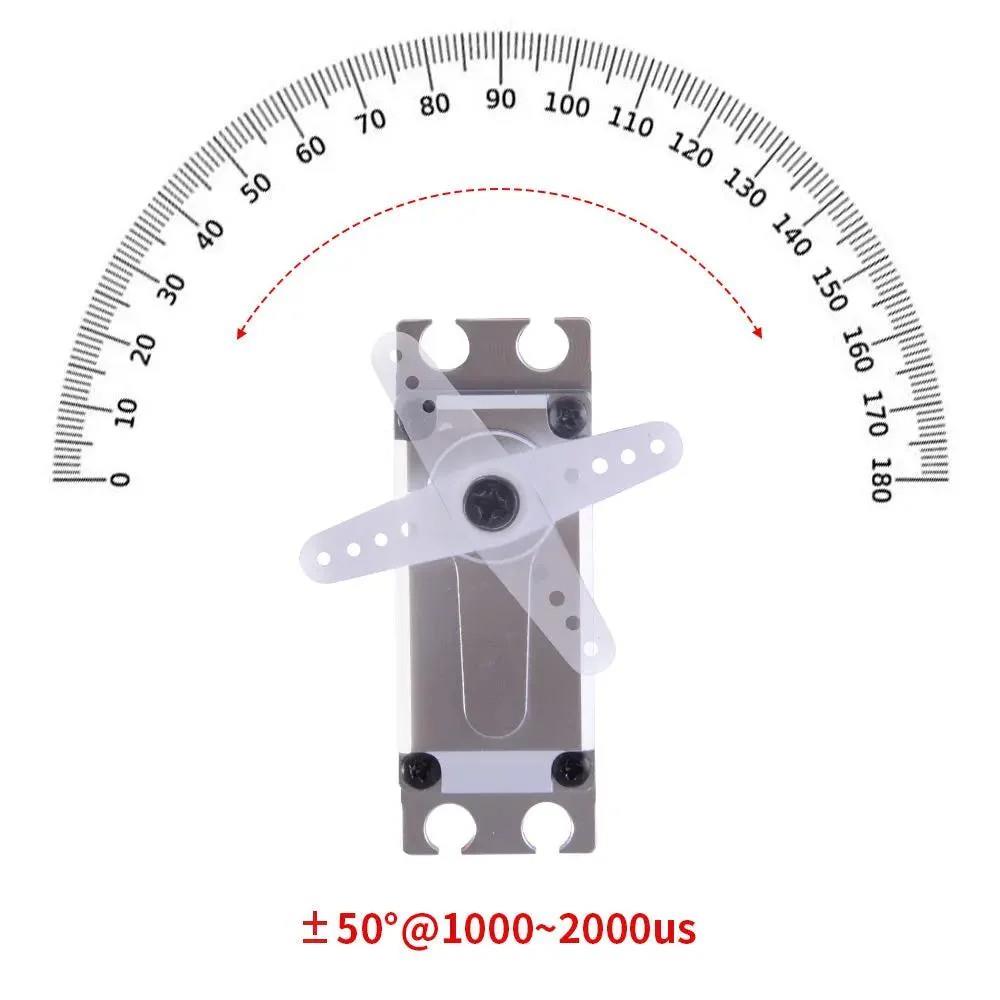

Default Travel Angle: ±50°=100°when1000μs-2000μs
Temperature Range: -10℃.......+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB

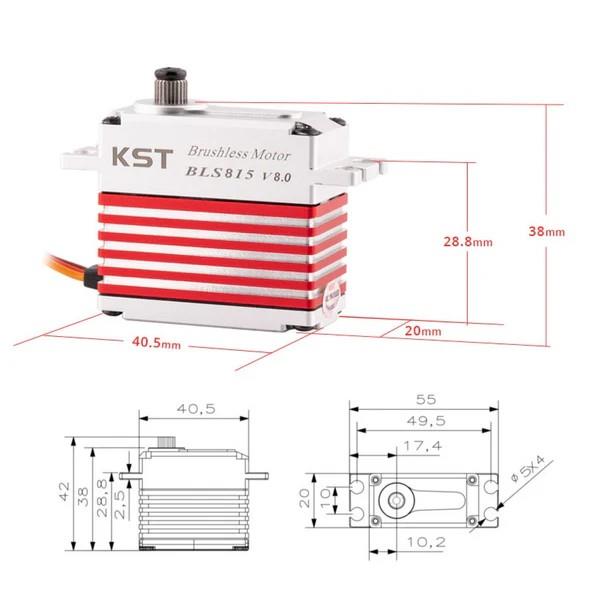

Case Dimensions: 40.5mm*20mm*38mm ±0.2mm
Weight: 70g±10%
