DS565X 8.4V HV Digital Metal Gear Servo 6kg.cm 0.04sec for Helicopters

Produktnr.: KST-DS565X

Førpris: DKKDin pris:475,00 DKK

Netshoppen med KnowHow
14 dages fuld returret
1-2 dages levering

Beskrivelse
Anmeldelser

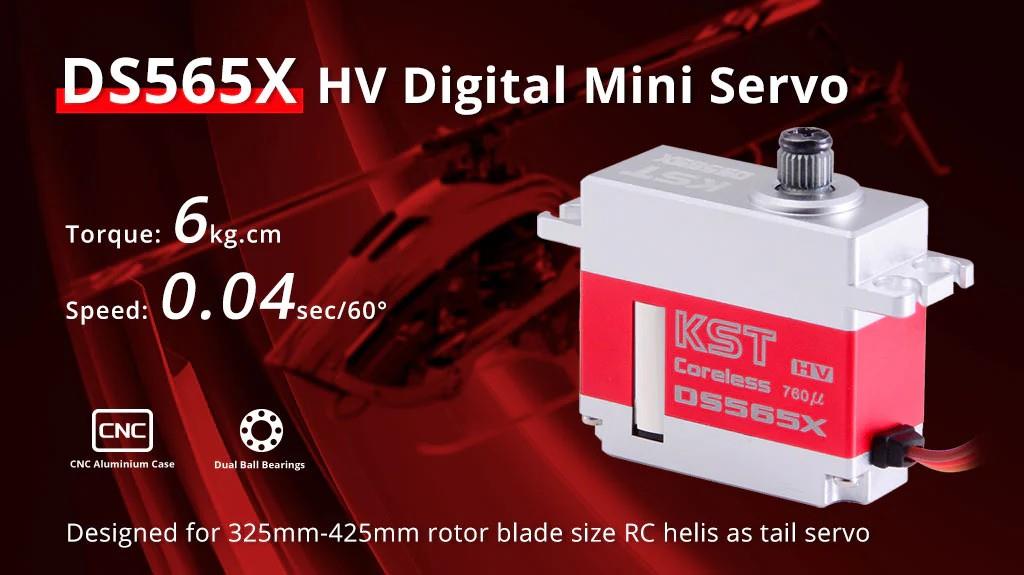

DS565X mini digital tail servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos! It's critical to ensure your gyro has the capability to operate 760μs Tail Servos, ensuring that the KST 565X operates correctly.

Features
Extreme Torque and Excellent Speed
Programmable
Dual Ball Bearings
CNC Aluminium Case

Specification
Item: DS565X Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V

Stalling Torque:
4.0Kgf.cm@6.0V
5.0Kgf.cm@7.4V
6.0Kgf.cm@8.4V

No-load Speed:
0.06sec/60°@6.0V
0.05sec/60°@7.4V
0.04sec/60°@8.4V

Working Frequency:760μs/560Hz
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
Weight: 40g±10%
