The new KST DS589MG is a high-voltage servo suitable for helicopter cyclic and all fixed-wing applications. At 15mm thick and 40g weight, it is reasonably small and light, considering its excellent 9.2 Kgf.cm of torque and 0.08 sec/60° speed. A similar size and torque as the well regared MKS HV737 and is faster and better value.

This servo uses a contactless sensor for position feedback. Also, see the KST MS589 servo which is the same size but uses a magnetic position sensor.

Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminium Case
Two Ball Bearings
Programmable
Ideal for RC Helicopter and Fixed Wing

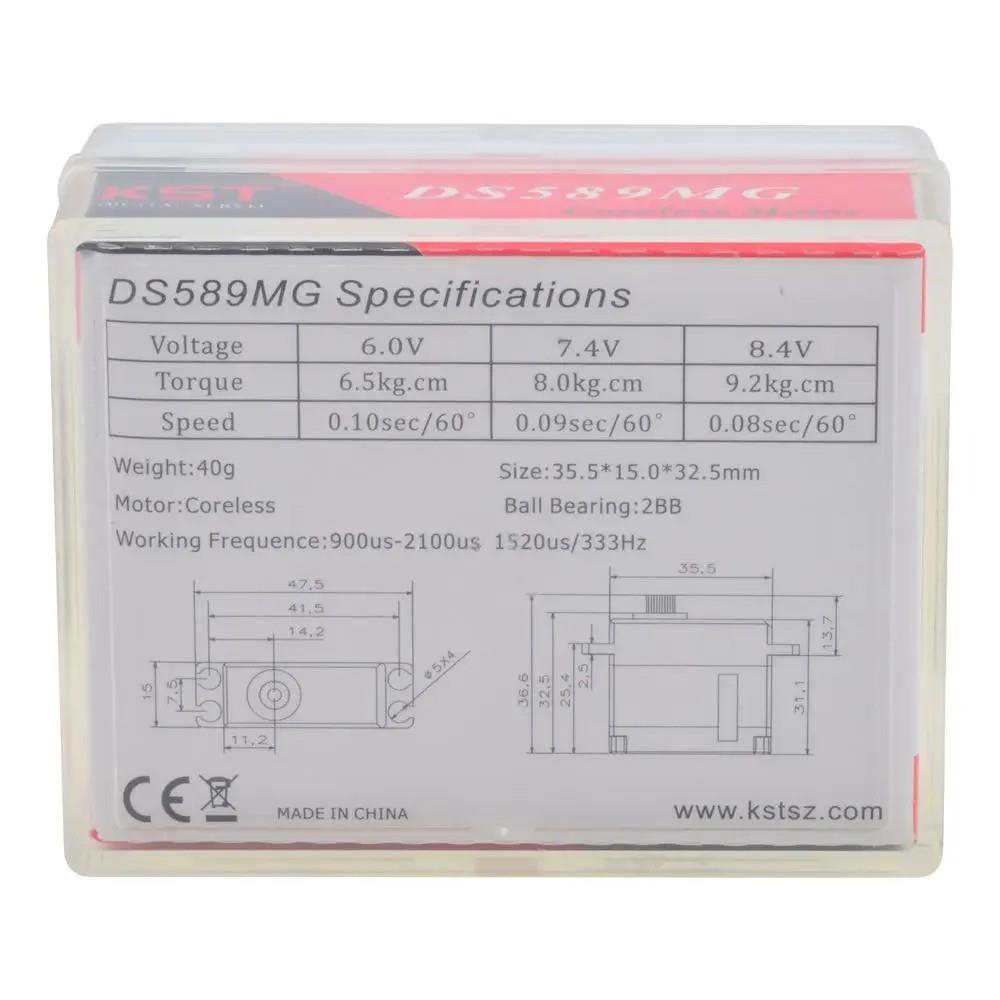

Specification
Item: DS589MG V8.0 Mini Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Stalling Torque: 6.5Kgf.cm@6.0V, 8.0Kgf.cm@7.4V, 9.2Kgf.cm@8.4V
No-load Speed: 0.10sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±60°=120° Total
Temperature Range: -20℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
Weight: 40g±10%
