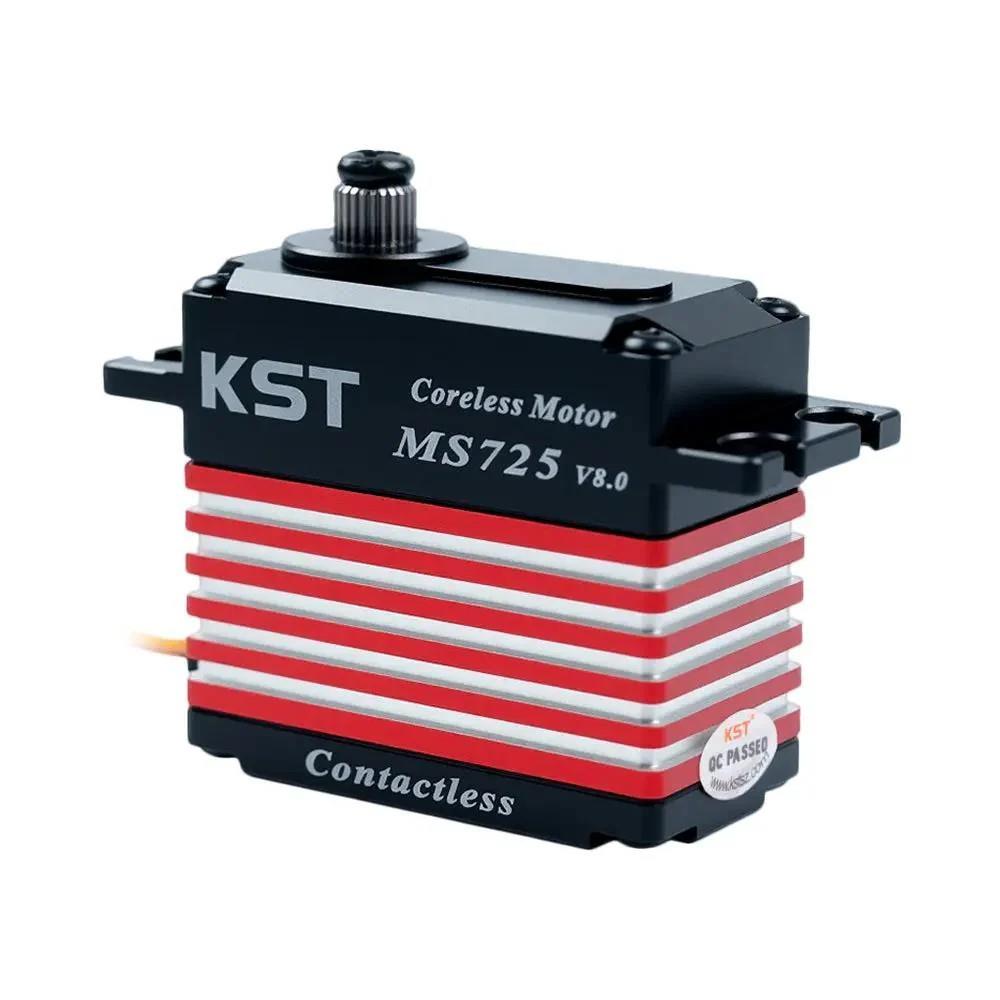

MS725 V8.0 HV Digital Coreless Servo

Produktnr.: KST-MS725 V8.0

Ring for pris!

Netshoppen med KnowHow
14 dages fuld returret
1-2 dages levering

Beskrivelse
Anmeldelser

Features
High Torque & Exceptional Speed
Large Default Travel Angle (programmable)
Dual Ball Bearings
High Performance Coreless DC Motor
Contactless Hall Sensor
Hardened Steel Gear
Ideal for 550 & 700 Size RC Helicopter

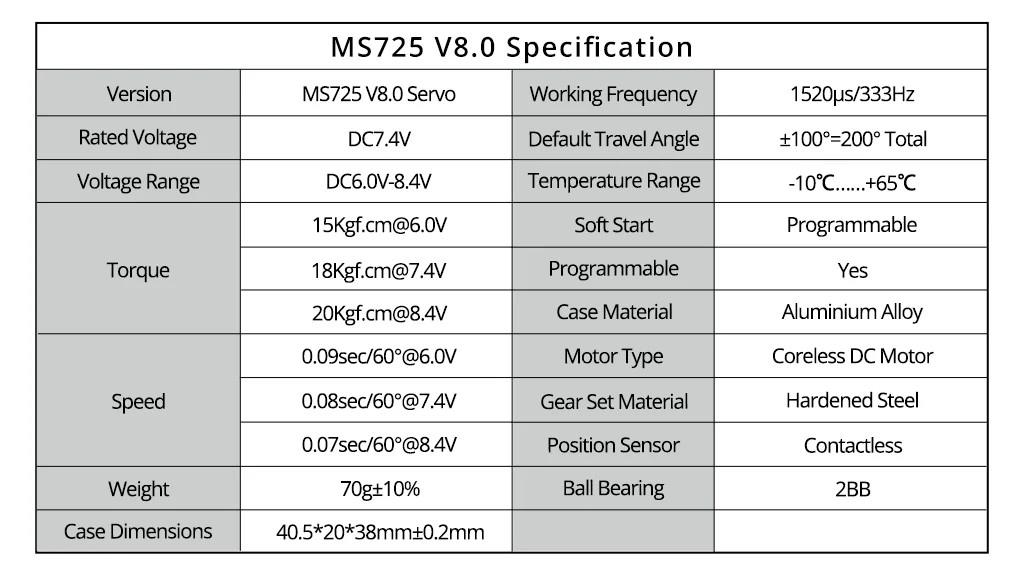

Specification
Item: MS725 V8.0 Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Stalling Torque: 15Kgf.cm@6.0V, 18Kgf.cm@7.4V, 20Kgf.cm@8.4V
No-load Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
Working Frequency: 1520μs/333Hz

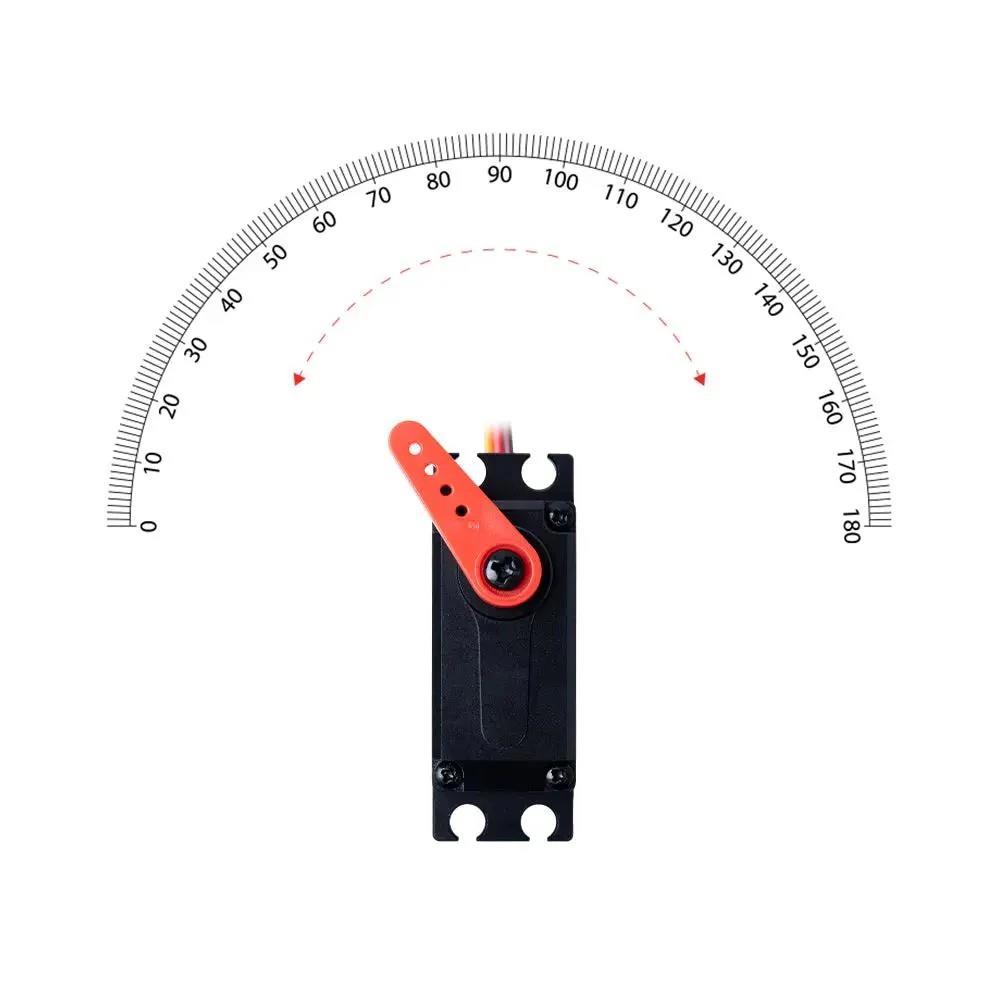

Default Travel Angle: ±100°=200° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Contactless
Ball Bearing: 2BB

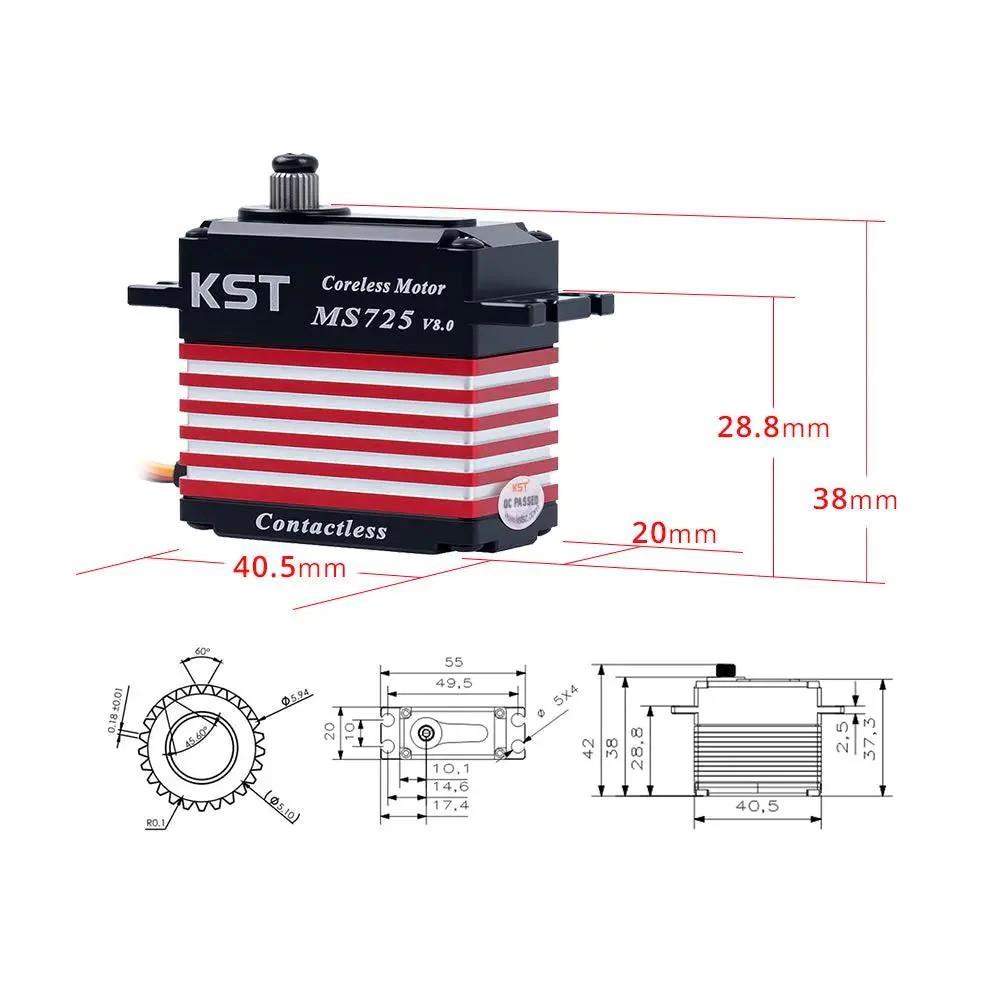

Case Dimensions: 40.5*20*38mm±0.2mm
Weight: 70g±10%

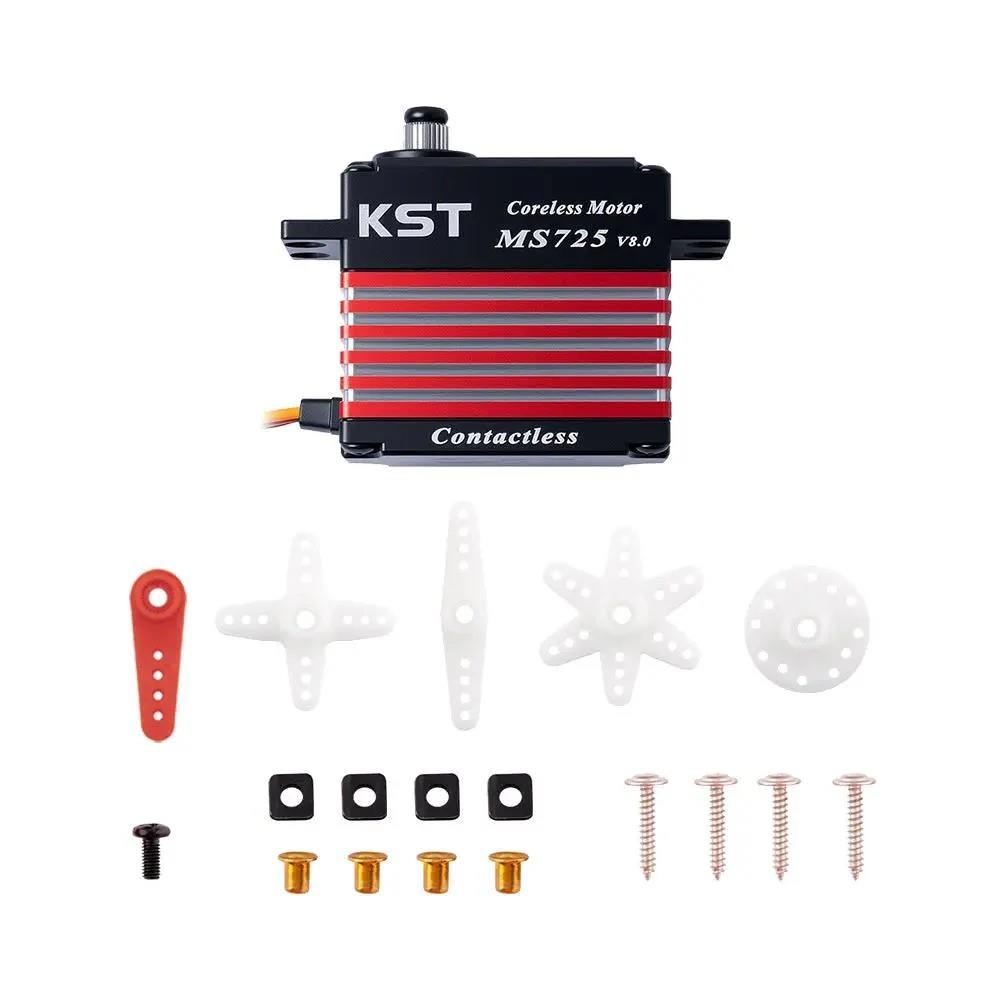

Package Includes
1 * MS725 V8.0 Servo
5 * Plastic Servo Horn
1 * Servo Horn Screw
4 * Mounting Screw
4 * Rubber Grommet
4 * Eyelet
